Product Overview

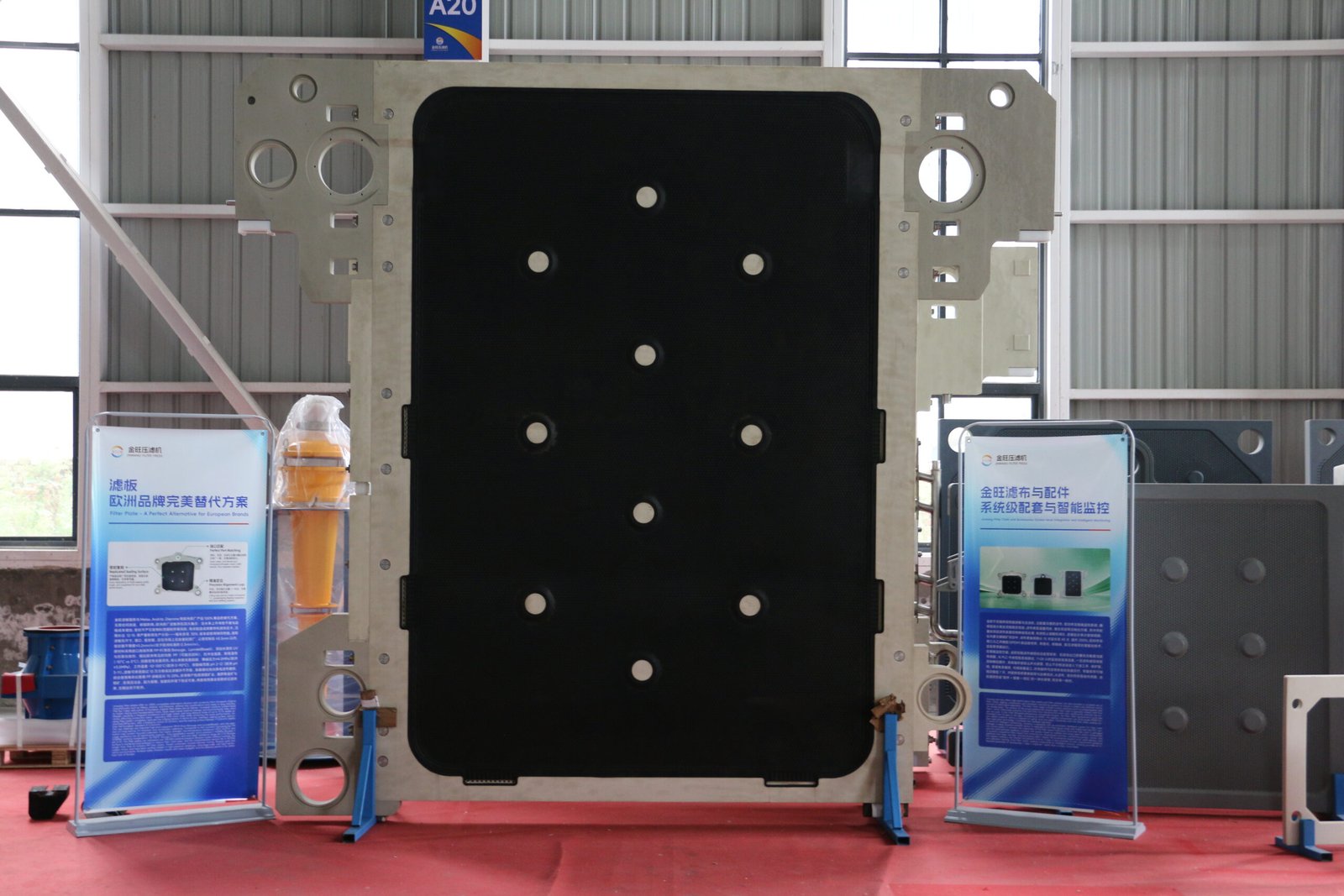

The Jinwang JWFFP3512 Rubber Filter Plate is a heavy-duty rubber filter plate designed for demanding industrial filter press applications.
Rubber filter plates offer a combination of elasticity, abrasion resistance, chemical resistance and reliable sealing performance, making them particularly suitable for applications involving abrasive slurries, corrosive media and frequent filtration cycles.
The JWFFP3512 is engineered to maintain stable chamber formation and sealing while accommodating the mechanical stresses generated during filter press operation.
Working Principle
During filtration, the rubber filter plates are compressed together with filter cloths to form sealed filtration chambers.
The suspension enters the chamber under pressure. The filter cloth allows liquid to pass through while retaining solid particles to form the filter cake.
The filtration process includes:
- Slurry enters the filtration chamber.
- Liquid passes through the filter cloth.
- Solid particles accumulate to form the filter cake.
- Filtrate flows through the plate drainage channels.
- After the filtration cycle is completed, the filter press opens.
- The filter cake is discharged and the plates return to their normal operating position.
The flexible rubber structure helps absorb mechanical stress and maintain reliable sealing throughout repeated filtration cycles.
Key Advantages
High Flexibility
The elastic rubber material provides good deformation recovery and helps maintain stable sealing during repeated operation.
Excellent Abrasion Resistance
Suitable for slurries containing abrasive particles, particularly in mining and mineral processing.
Chemical Resistance
Rubber formulations can be selected according to the chemical characteristics of the slurry and operating environment.
Reliable Sealing
Flexible sealing surfaces provide close contact between adjacent plates and help minimize leakage.
Strong Impact Resistance
The rubber construction helps absorb mechanical impact during plate closing, opening and cake discharge.
Heavy-Duty Performance
Designed for demanding industrial filtration conditions and repeated operating cycles.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | JWFFP3512 |
| Product Type | Rubber Filter Plate |
| Material | Industrial-Grade Rubber |
| Plate Structure | Chamber / Customized |
| Filter Cloth | Customized according to application |
| Feed Configuration | Central / Corner Feed / Customized |
| Filtrate Discharge | Internal Drainage Channels |
| Working Pressure | Customized according to filter press |
| Application | Heavy-Duty Solid-Liquid Separation |
Typical Applications
The JWFFP3512 Rubber Filter Plate is suitable for:
- Mining and mineral processing
- Mineral concentrate filtration
- Tailings dewatering
- Metallurgical processing
- Chemical industry
- Industrial wastewater treatment
- Sludge dewatering
- Abrasive slurry filtration
- Corrosive material filtration
- Heavy-duty industrial filtration
Customized Rubber Filter Plate Manufacturing
Jinwang manufactures JWFFP3512 rubber filter plates according to different filter press models, plate dimensions and process requirements.
The rubber compound, plate structure, sealing design, feed configuration, filtrate drainage arrangement and filter cloth can be customized according to slurry characteristics, operating pressure and filtration conditions.
For demanding applications involving high abrasion, chemical corrosion or frequent filtration cycles, the JWFFP3512 provides a durable and flexible filtration solution.
Jinwang — Heavy-Duty Rubber Filter Plates for Reliable Industrial Solid-Liquid Separation.
