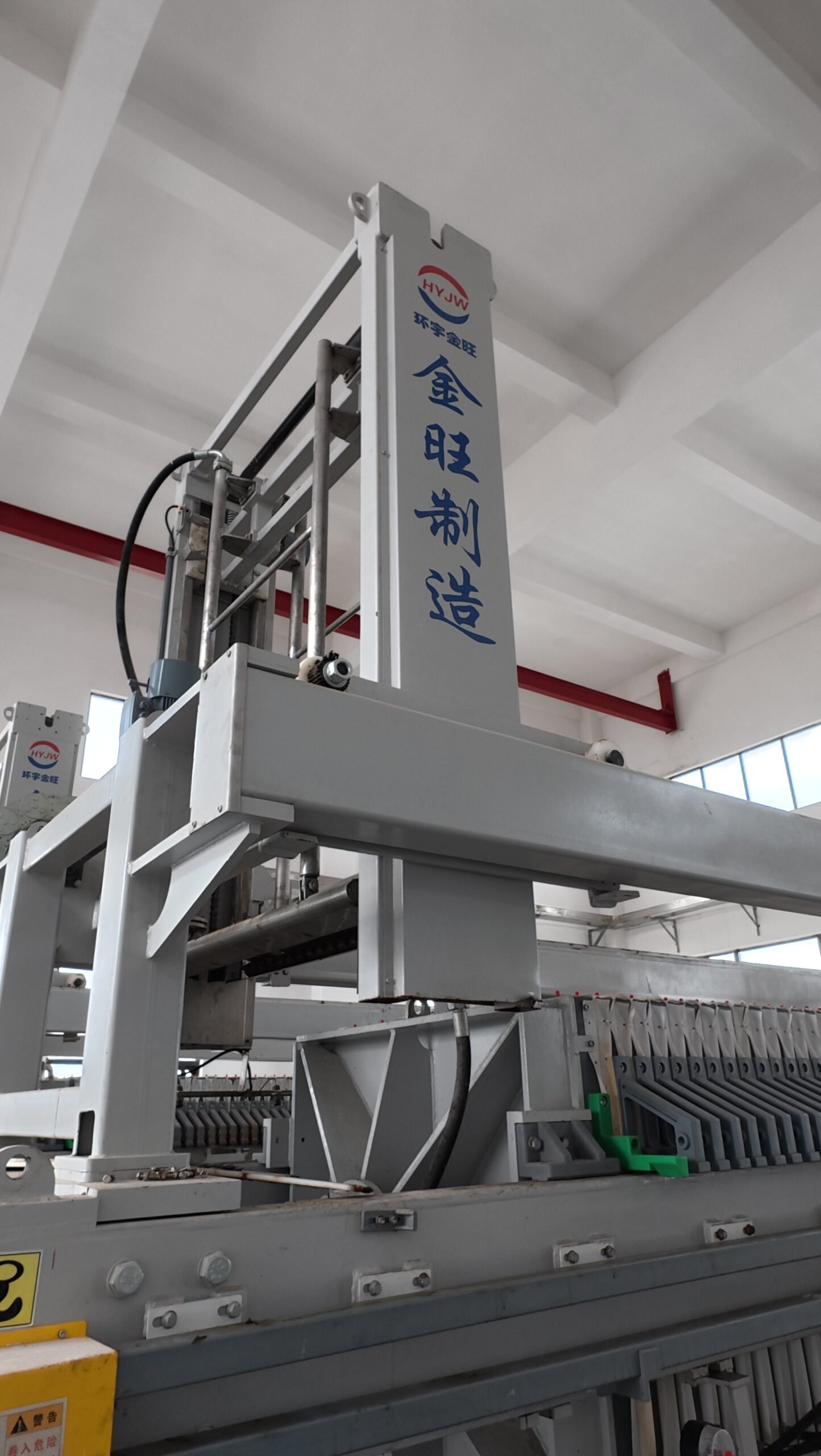

The cloth wash system features the state‑of‑the‑art upward‑holding‑plate water rinsing mechanism. Mounted above filter plates, this electromechanical unit is fully PLC‑controlled.
The upward‑holding‑plate positive high‑pressure direct water rinsing mechanism represents today’s mainstream filter‑cloth cleaning technology, drawing on leading Western European design and manufacturing expertise.

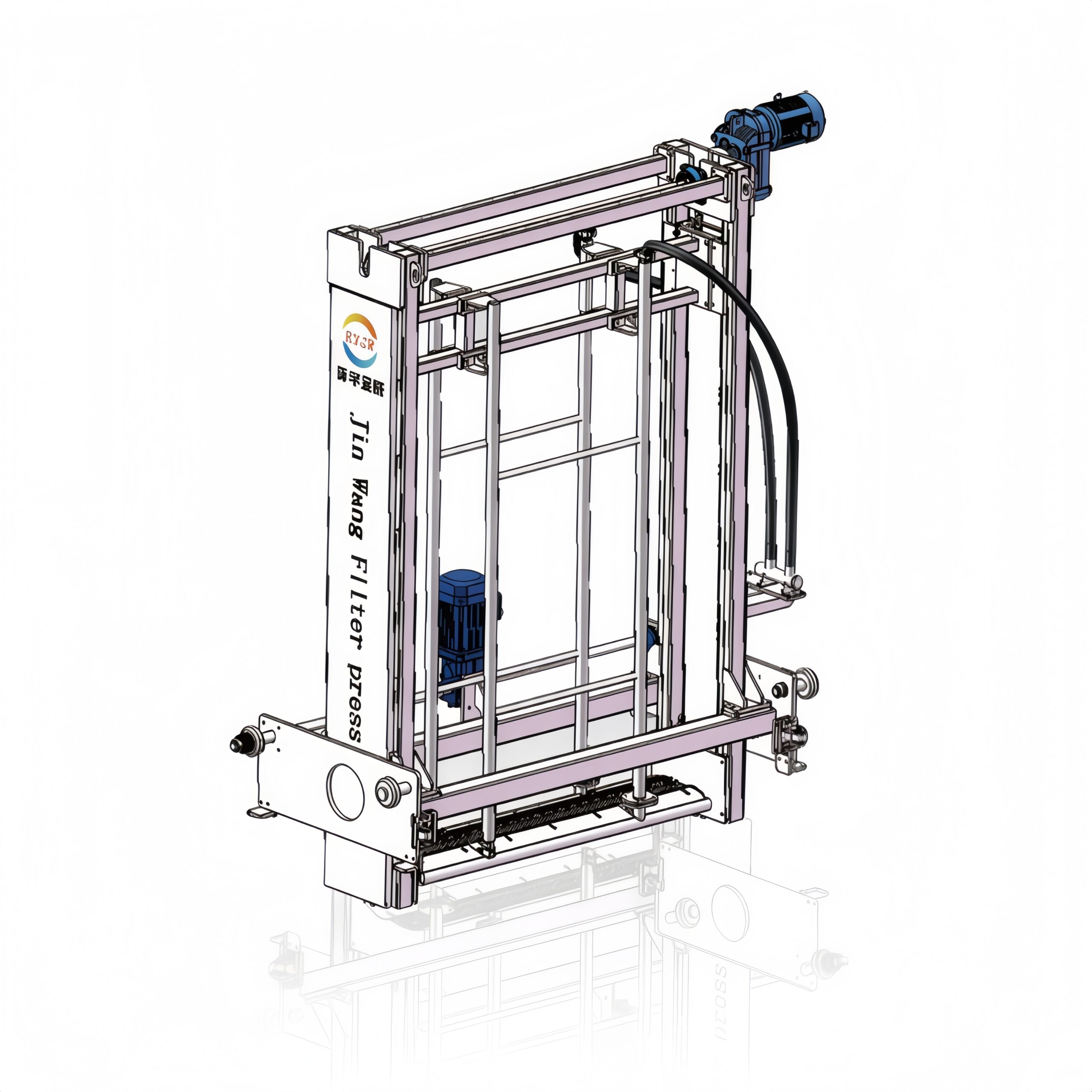

Installed at the upper part of the filter press, the assembly consists of water‑washing track, water‑washing frame, travelling drive unit for the washing frame, water inlet pipe, drag chain, washing pipe, spray nozzles, washing‑pipe lifting device and geared motor. Under PLC control, it cooperates with the plate‑pulling device to perform complete and automatic filter‑cloth cleaning operations.
