Product Overview

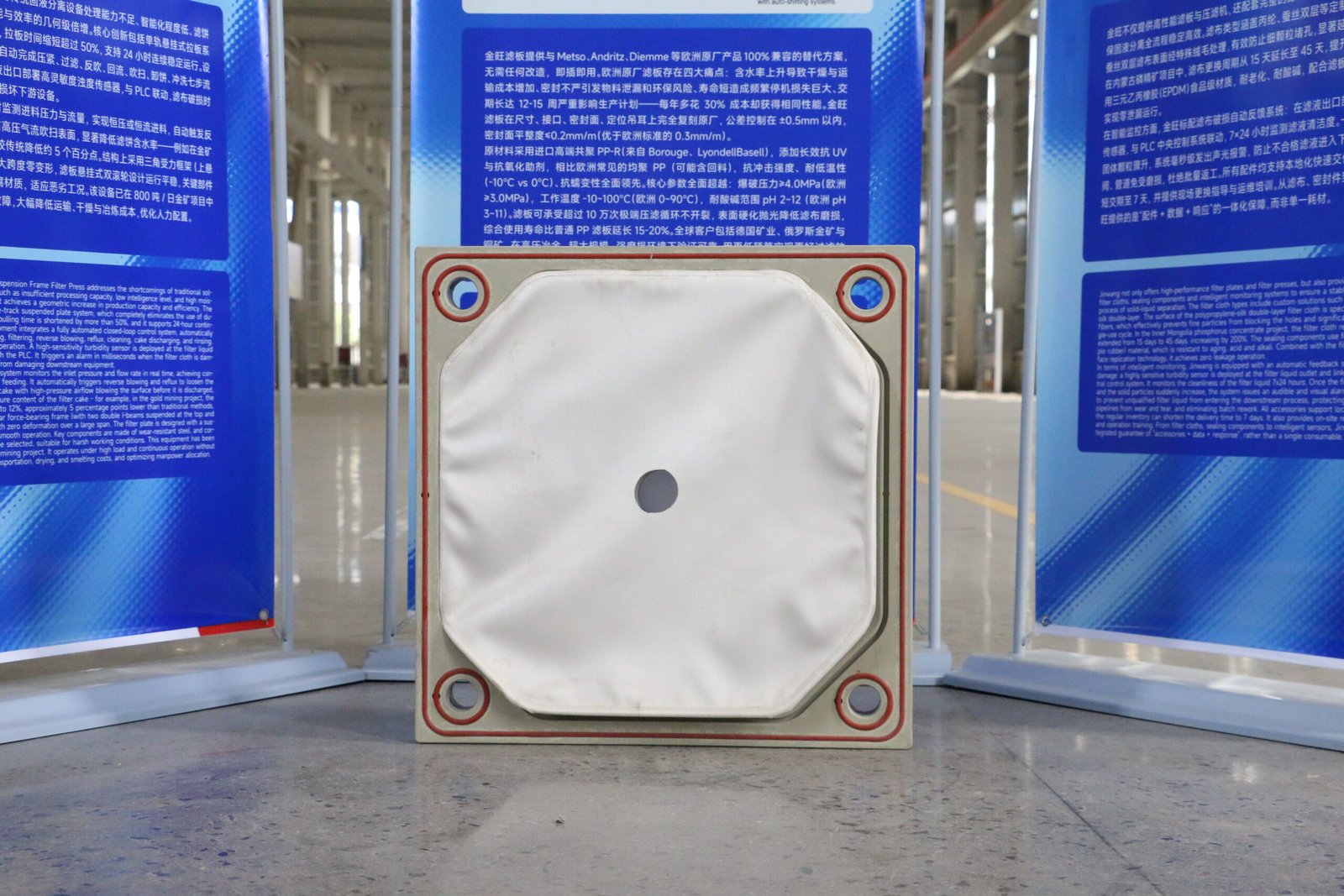

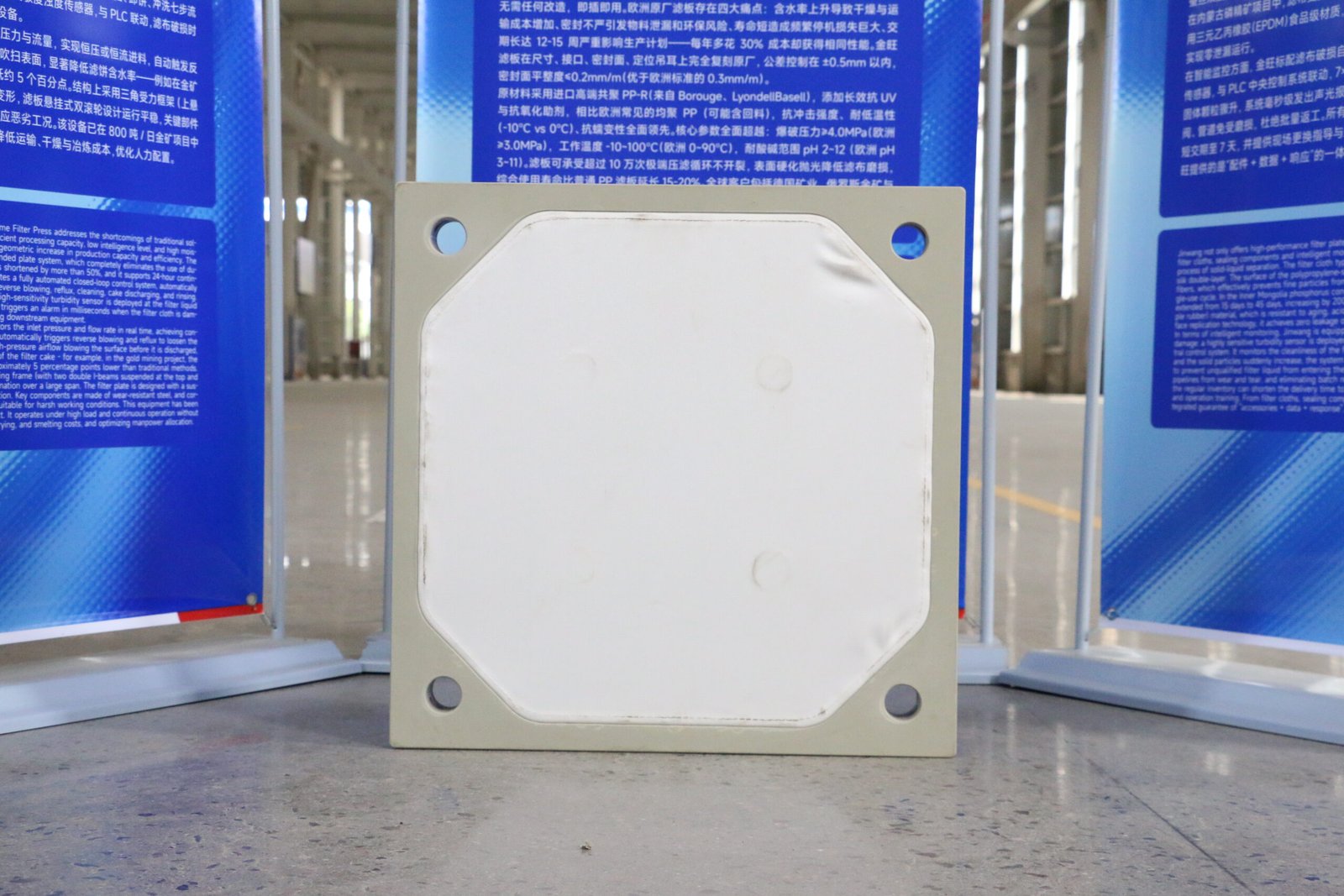

The Jinwang 800×800 Recessed Filter Plate with Integrated Filter Cloth is designed for industrial filtration applications requiring a compact, reliable and easy-to-install filter element.

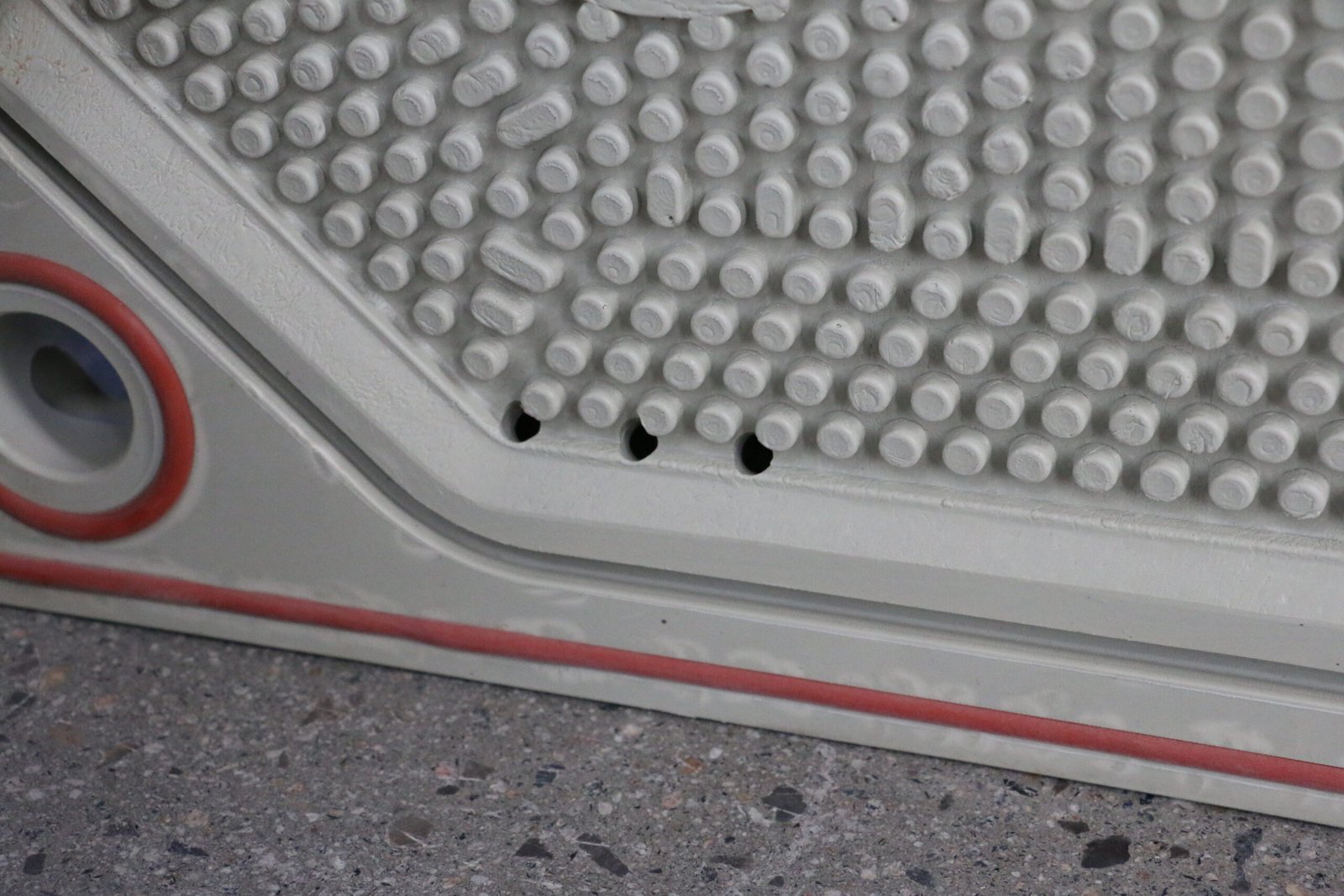

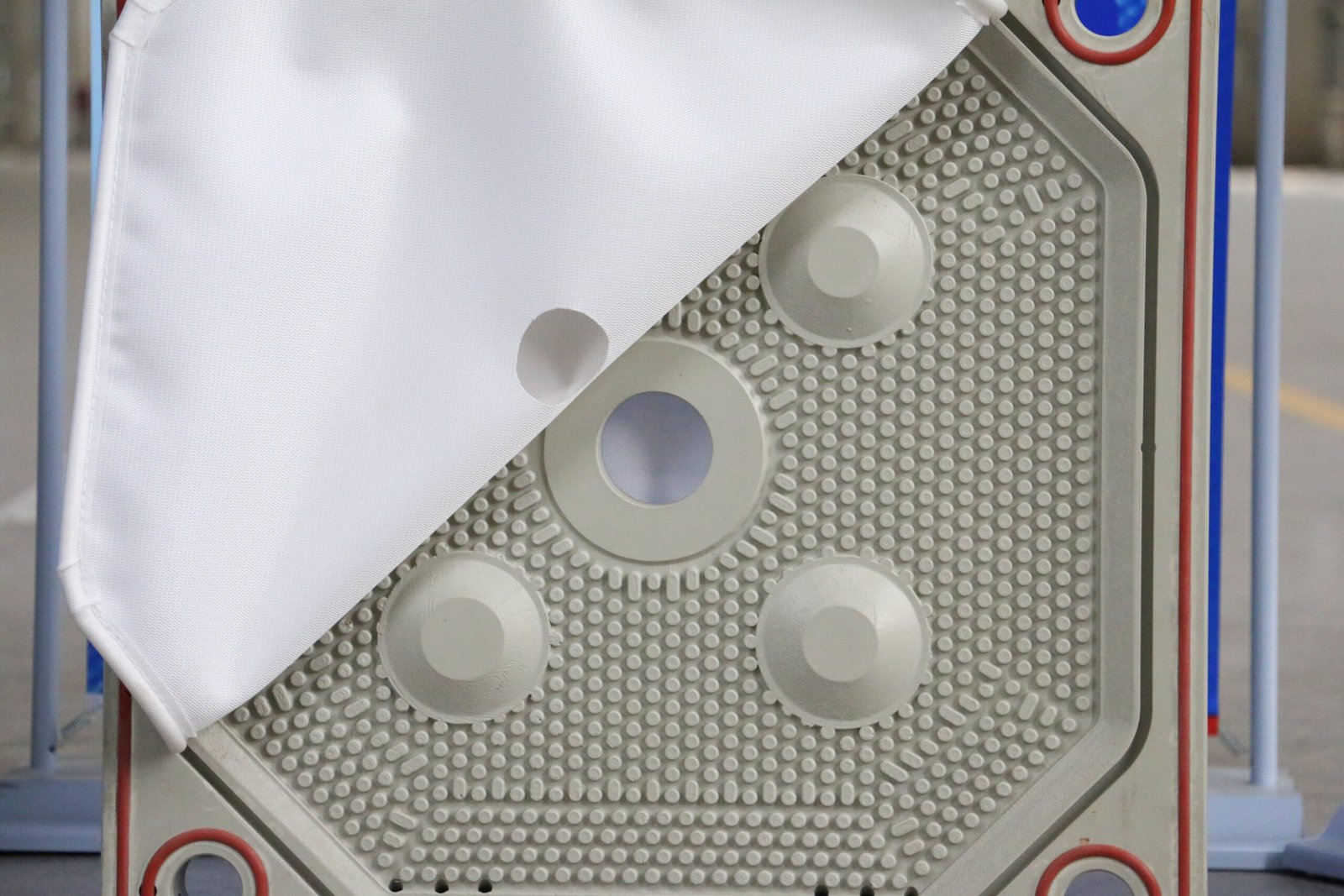

The recessed filter plate forms a filtration chamber when pressed together with adjacent plates. The filter cloth is precisely fitted to the plate surface, allowing the solid particles in the suspension to be retained while filtrate passes through the cloth and enters the plate’s drainage channels.
The integrated plate + filter cloth configuration simplifies installation and replacement, helping reduce assembly time and improve the consistency of filtration performance.
| Item | Specification |
|---|---|
| Product Type | Inlaid Filter Plate |
| Model Number | 800×800 |
| Material | PP + TPE Elastomer |
| Stay Boss Number | 4 |
| Filter Plate Thickness | 65 mm |
| Stay Boss Distance | 250 mm |
| Normal Operating Temperature | ≤60℃ |
| Standard Working Pressure | 0.6–1.2 MPa |
| High Temperature Range | 70–90℃ |
| High Pressure Range | 1.4–1.8 MPa |
| Ultra-high Temperature Range | 100–120℃ |
| Ultra-high Pressure Range | 2.0–2.5 MPa |
| Warranty Period | 1 year warranty under normal temperature and pressure conditions (non-human damage) |
| Manufacturer | Jinwang Filter Press Co., Ltd. |
| Note | Thickness can be customized according to customer requirements |
