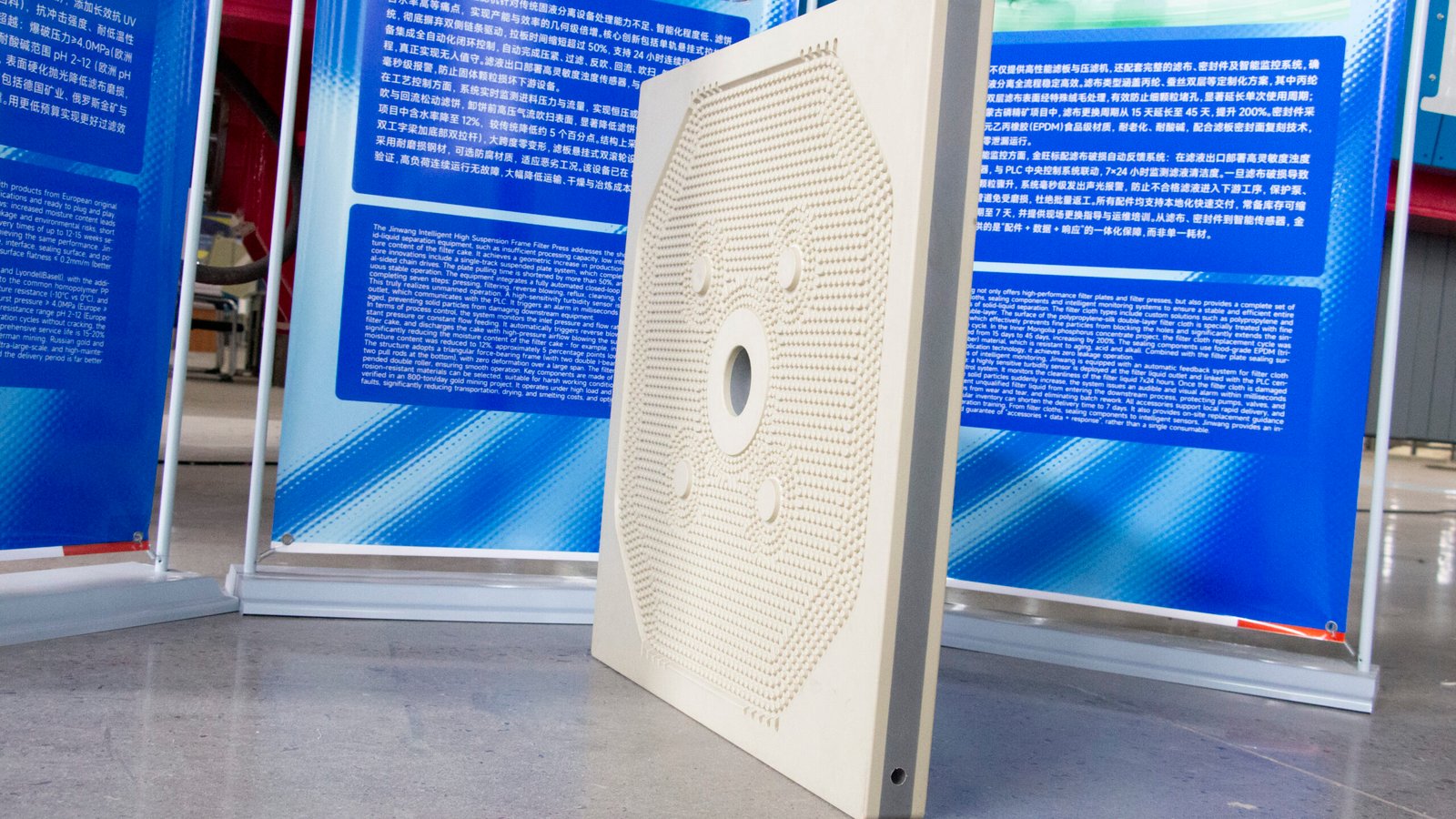

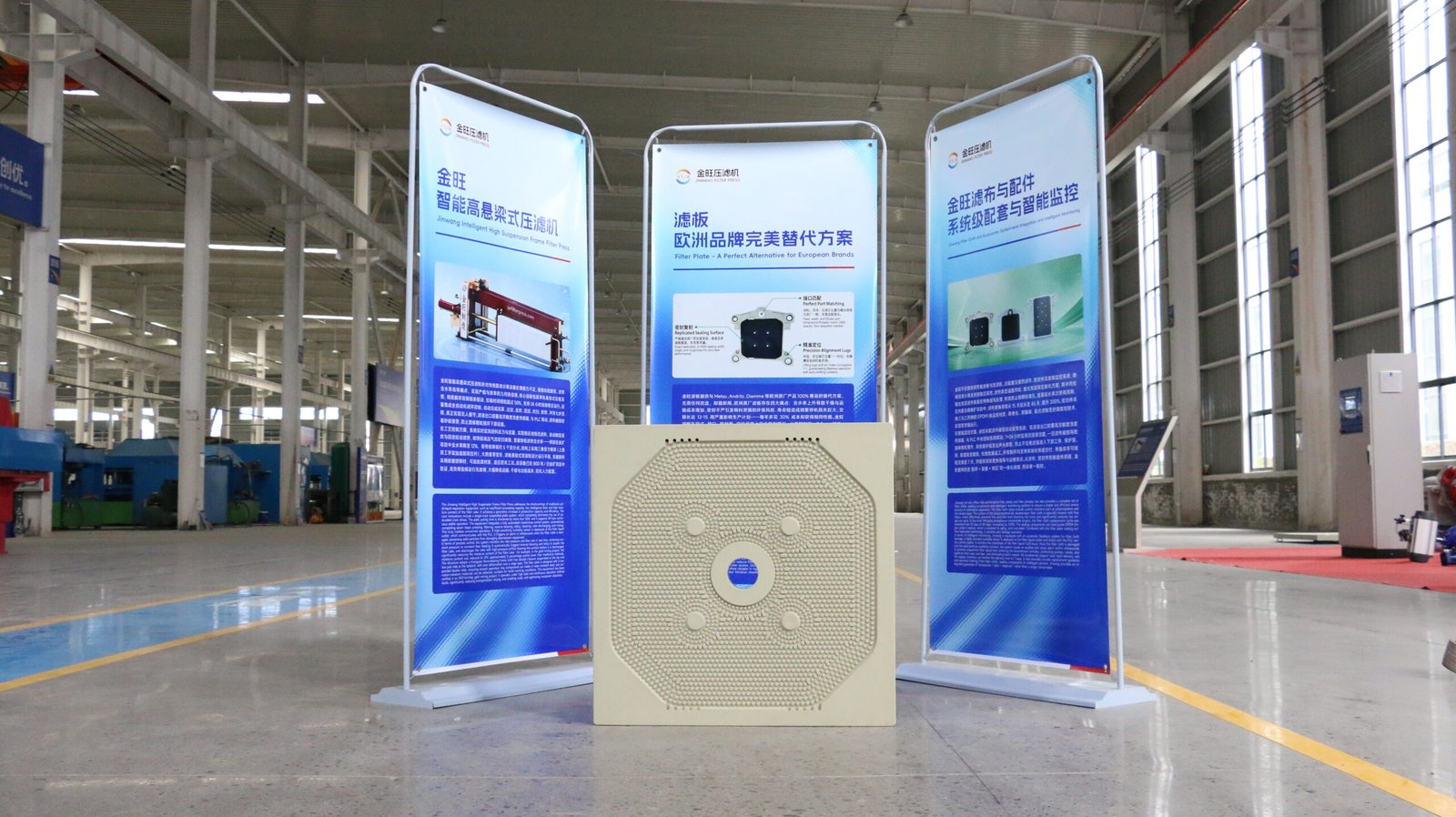

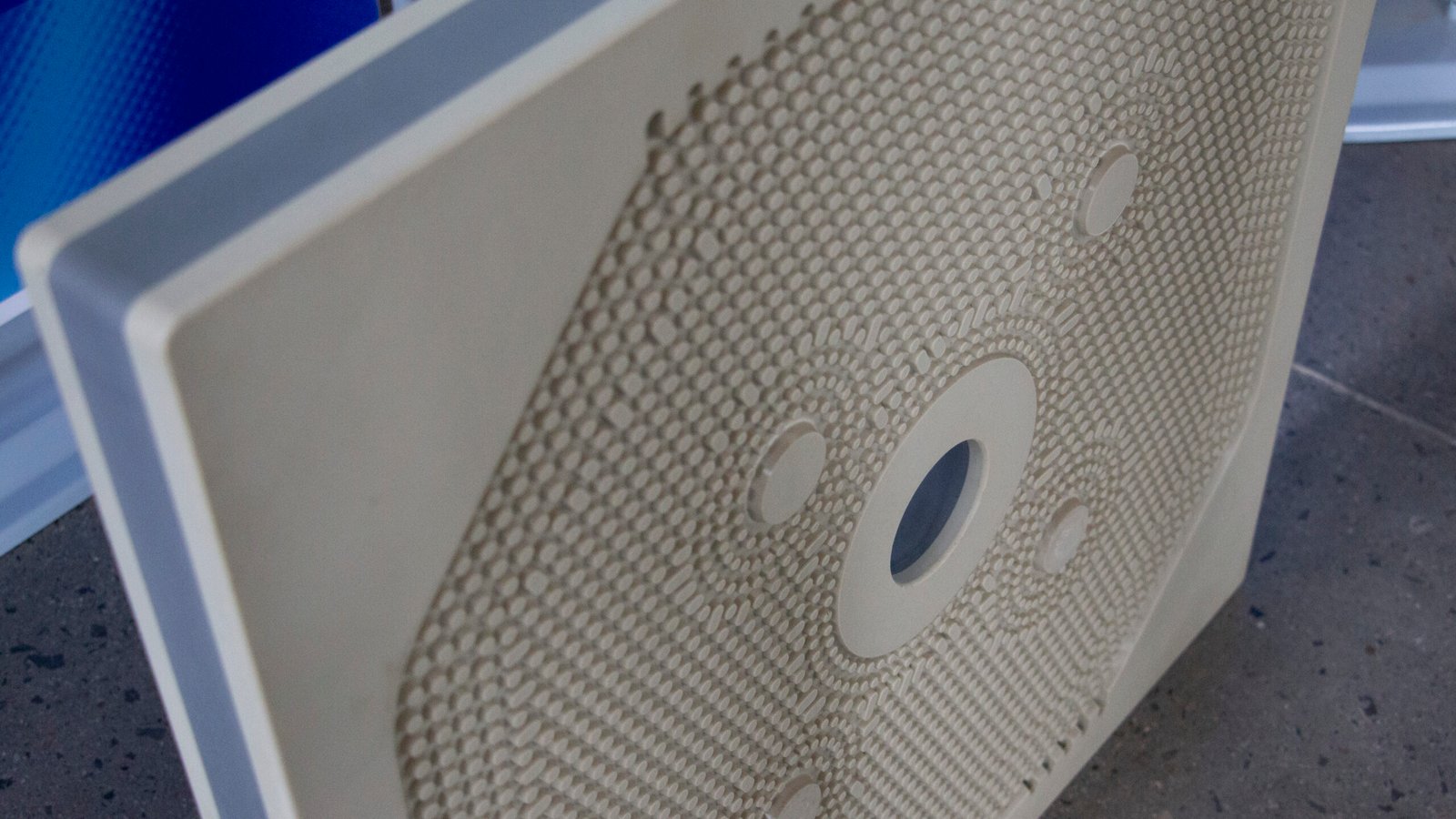

The Jinwang 800×800 Membrane Filter Plate is specially designed for high-performance solid-liquid separation applications requiring lower cake moisture and higher filtration efficiency.

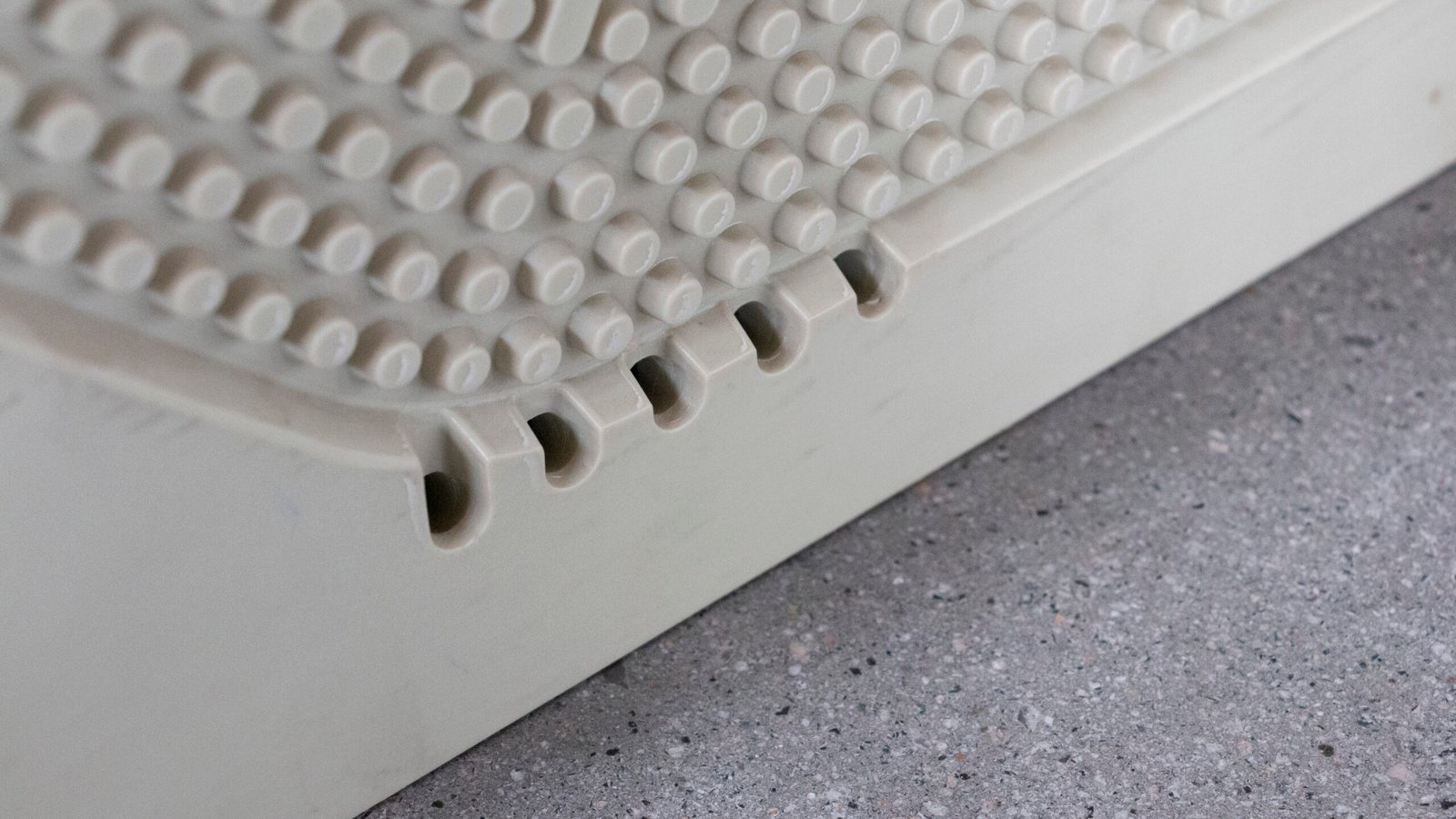

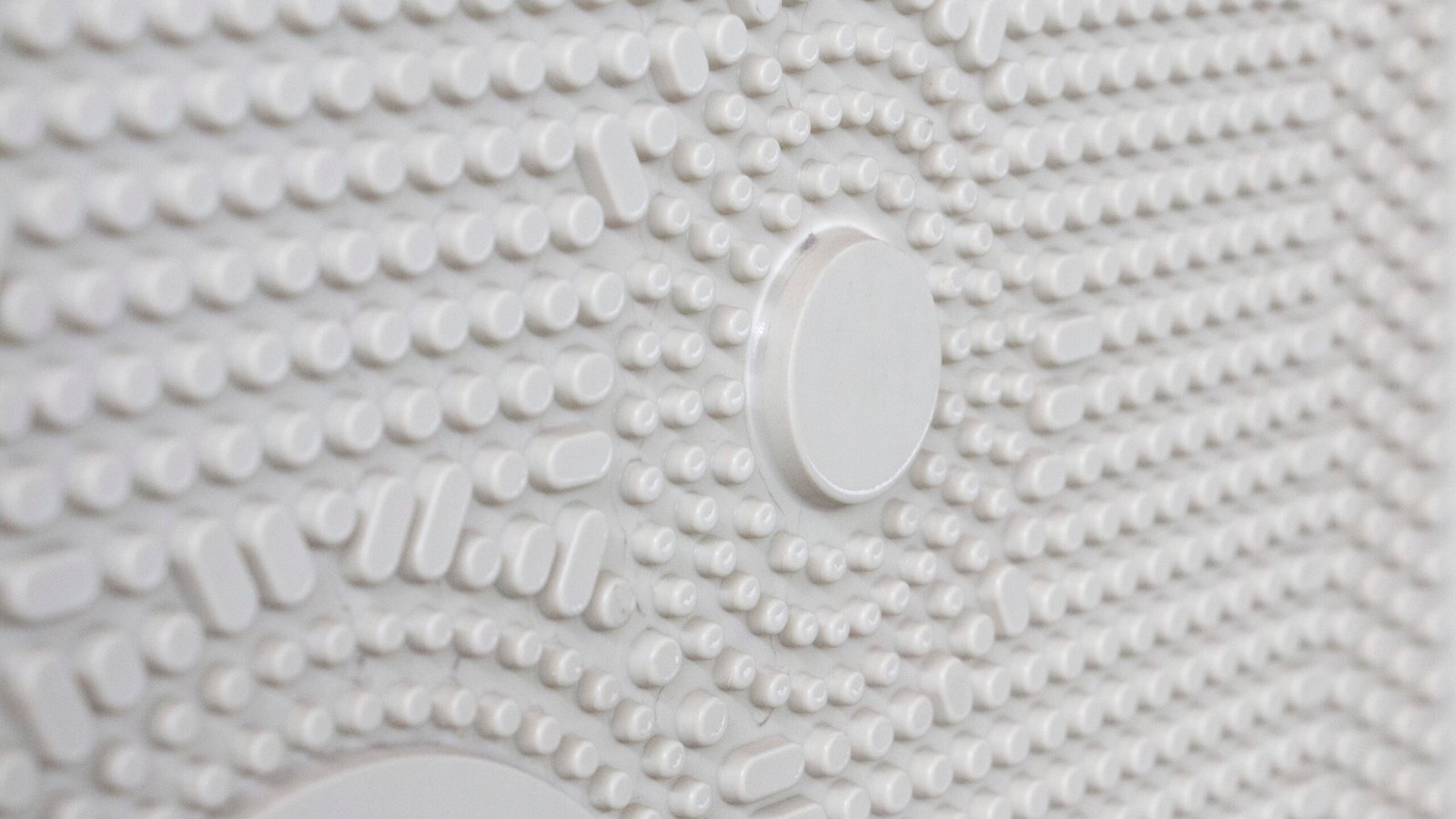

Compared with conventional chamber filter plates, the membrane filter plate provides an additional mechanical pressing stage after the initial filtration process. The flexible membrane expands and compresses the filter cake evenly from both sides.
| Item | Specification |
|---|---|
| Product Type | Membrane Filter Plate |
| Model Number | 800×800 |
| Material | PP + TPE Elastomer |
| Stay Boss Number | 4 |

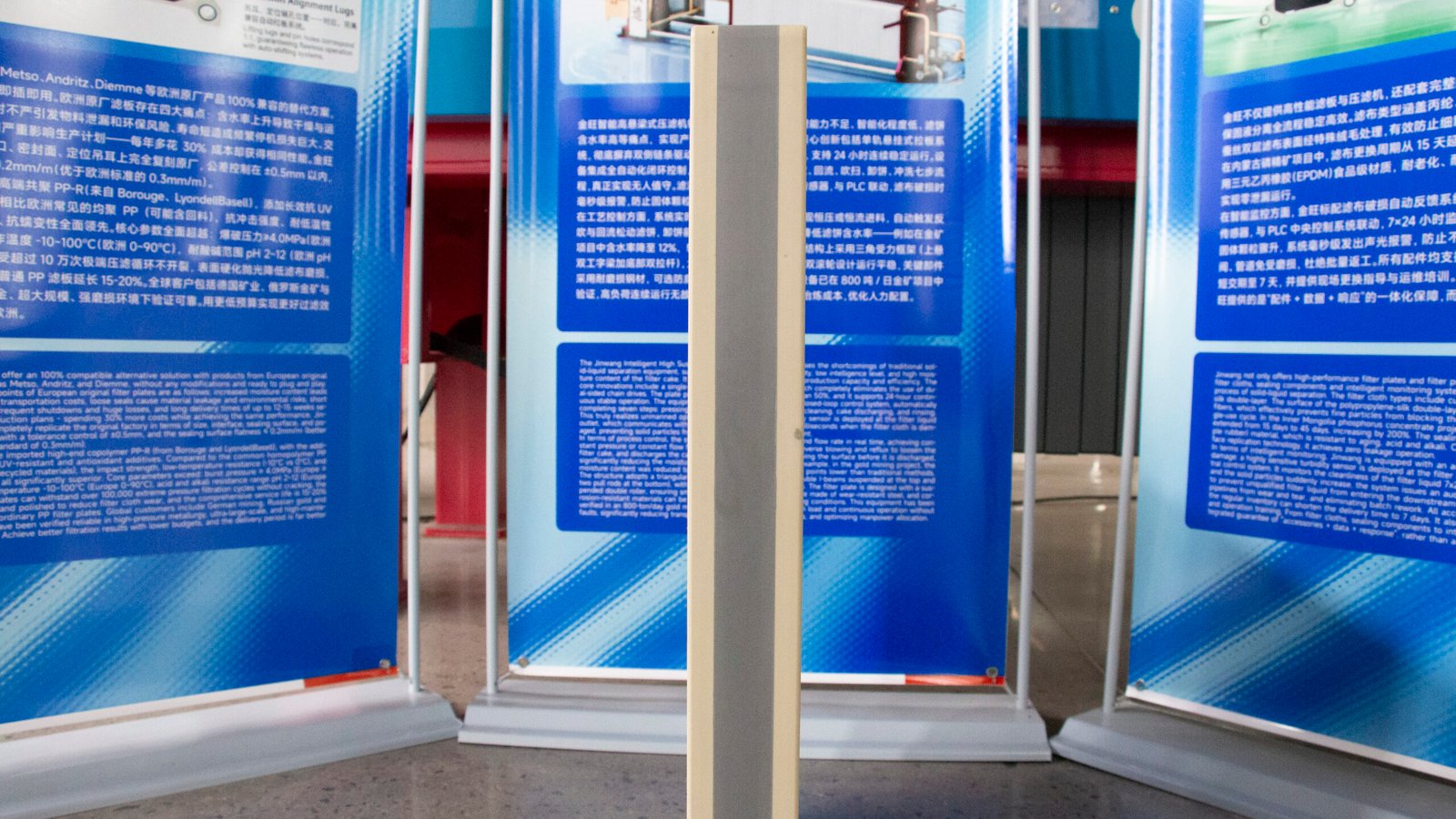

| Filter Plate Thickness | 65 mm |
| Stay Boss Distance | 250 mm |
| Normal Operating Temperature | ≤60℃ |
| Standard Working Pressure | 0.6–1.2 MPa |
| High Temperature Range | 70–90℃ |
| High Pressure Range | 1.4–1.8 MPa |
| Ultra-high Temperature Range | 100–120℃ |
| Ultra-high Pressure Range | 2.0–2.5 MPa |
| Warranty Period | 1 year warranty under normal temperature and pressure conditions (non-human damage) |
| Manufacturer | Jinwang Filter Press Co., Ltd. |
| Note | Thickness can be customized according to customer requirements |
