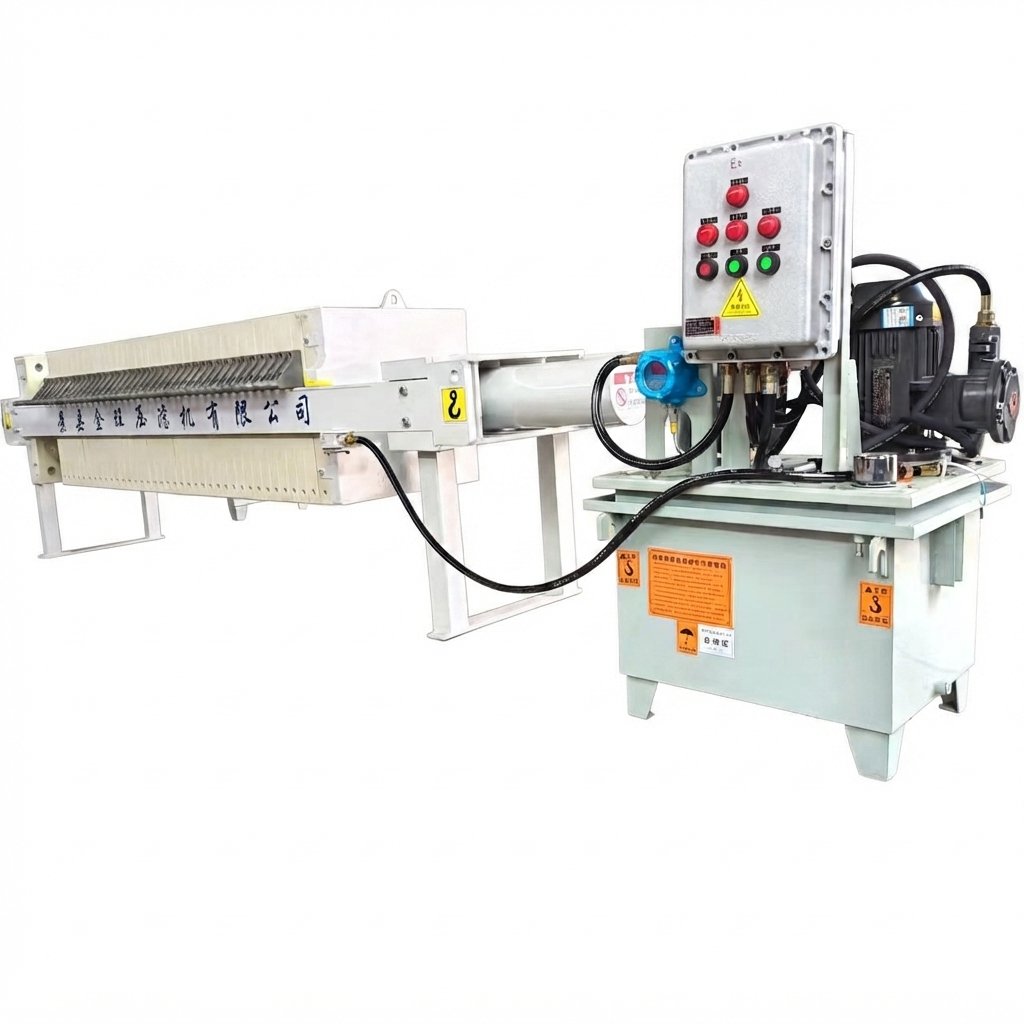

630 Explosion-Proof Filter Press

Product Structure

Adopts integrated design of machine, electricity and liquid. Each component features reasonable structure and simple connection. All working procedures are executed by PLC programmable logic controller via electric control cabinet.

Process Flow

1. Filter plate pressing: Manually start motor & hydraulic pump, push compression plate. When hydraulic pressure reaches rated value, tighten lock nut and stop pump.
2. Automatic pressure maintaining: Switch to automatic mode, press compression button, oil pump drives piston to compact filter plates.
3. Feed filtration: Check pipelines & valves, open feed valve. Slurry flows into filter chambers through plate feeding holes to complete pressure filtration under regulated feeding pressure.

Features & Advantages

1. Simple structure, easy operation, stable running and convenient maintenance
2. Less wearing parts, low maintenance cost, high‑level automation
3. Excellent filtration performance, wide application scope
4. Suitable for all solid‑liquid separation scenarios

Application Industries

Coal, mining, petroleum extraction & refining, chemical, metallurgy, dyestuff, pharmaceutical, food & beverage, environmental protection, sewage treatment and other industries.

1. XₐᴹZ/800‑UF

Technical parameters: cylinder diameter Φ250 U‑Plastic plate (60 mm thick, filter cloth 1 mm/plate)

NOTE: Feed pressure ≤ 1.2 MPa, pit dimensions are without flap.

2. XₐᴹZ/900‑UF

Technical parameters: cylinder diameter Φ200

2‑1 U‑Plastic plate (60 mm thick, filter cloth 1 mm/plate)

2‑2 U‑Plastic plate (65 mm thick, filter cloth 1 mm/plate)

3. XₐᴹZ/1000‑UF

3‑1 U‑Plastic chamber (60 mm thick, filter cloth 1 mm/board)

3‑2 U‑Plastic chamber (65 mm thick, filter cloth 1 mm/board)

3‑3 U‑Plastic chamber (70 mm thick, filter cloth 1 mm/board)

4. XₐᴹZ/1500×2000‑UF

U‑Plastic chamber (80 mm thick, filter cloth 1 mm/board)

Note: Filtered area preceded by a ★ sign plus a pair of intermediate supports.

5. XₐᴹZ/1250‑UF

Note: “★” plus one set of center supports.

5‑1 U‑Plastic plate (60 mm thick, filter cloth 1 mm/plate)

5‑2 U‑Plastic plate (65 mm thick, filter cloth 1 mm/plate)

5‑3 U‑Plastic plate (70 mm thick, filter cloth 1 mm/plate)

5‑4 U‑Plastic plate (75 mm thick, filter cloth 1 mm/plate)

6. XₐᴹZ/1500‑UF

Note: Filtered area preceded by a ★ sign plus a pair of intermediate supports.

6‑1 U‑Plastic plate (70 mm thick, filter cloth 1 mm/plate)

6‑2 U‑Plastic plate (75 mm thick, filter cloth 1 mm/plate)

6‑3 U‑Plastic sheet (80 mm thick, filter cloth 1 mm/board)

7. XₐᴹZ/1600‑UF

Note: Filtered area preceded by a ★ sign plus a pair of intermediate supports.

7‑1 U‑Plastic plate (70 mm thick, filter cloth 1 mm/plate)

7‑2 U‑Plastic plate (75 mm thick, filter cloth 1 mm/plate)

7‑3 U‑Plastic sheet (80 mm thick, filter cloth 1 mm/board)

8. XₐᴹZ/2000‑UF

U‑Plastic plate (80 mm thick, filter cloth 1 mm/plate)

Note: Filtered area preceded by a ★ sign plus a pair of intermediate supports.

9. XₐᴹZ/2500×2600‑UF

U‑plastic filter plate (90/80 mm thick, filter cloth 1 mm/plate)

Note: Filtered area preceded by a ★ sign plus a pair of intermediate supports.
