Where is your factory located?

Our manufacturing facility is directly located in Jing County, Hengshui City, Hebei Province, China.

How can I reduce the moisture content of filter cakes?

Key parameters for moisture reduction include: – Increasing feed pressure (adjustable range: 0.8–2.0 MPa) – Activating membrane squeeze (secondary compression reduces moisture by 5–10%). – Extending the air-blowing time via the PLC control system. – Optimizing mesh size (800–1,200 mesh is recommended for fine particles).

What is the maximum processing capacity of a filter press, and how is the model size determined?

The processing capacity of a JW filter press depends on the chamber volume, the number of filter plates, and the effective filtration area. We calculate capacity using the following formula: Processing Volume (m³) = Chamber Volume × Cycles per Hour × Operating Time. Selecting a model requires analyzing material properties (e.g., solids content and particle size distribution) and process requirements (e.g., open-discharge vs. closed-discharge design). Please contact our engineering team with your material specifications for a customized recommendation.

How do I select the right filter plate material (polypropylene, rubber, or stainless steel)?

– Polypropylene (PP) : Suitable for weak acids and alkalis (pH 1–12). Cost-effective. Temperature resistance up to 80°C. – Rubber : Ideal for abrasive slurries (e.g., mining tailings) due to its high wear resistance. – Stainless steel (304/316L) : Resistant to highly corrosive media (e.g., chlorides and organic acids) with a temperature tolerance of up to 150°C. JW provides material corrosion resistance test reports upon request for validation.

How can I prevent or address clogged or torn filter cloth? What is the typical replacement cycle?

The lifespan of filter cloth depends on the characteristics of the material (e.g., viscosity and particle sharpness) and cleaning frequency. We recommend the following practices: – Apply backflushing combined with ultrasonic cleaning to restore permeability. – Use dual-layer composite cloths (e.g., polypropylene and polyester) in high-abrasion environments. The standard replacement interval is 3–6 months. For enhanced anti-clogging performance, PTFE-coated filter cloths are available as an optional upgrade.

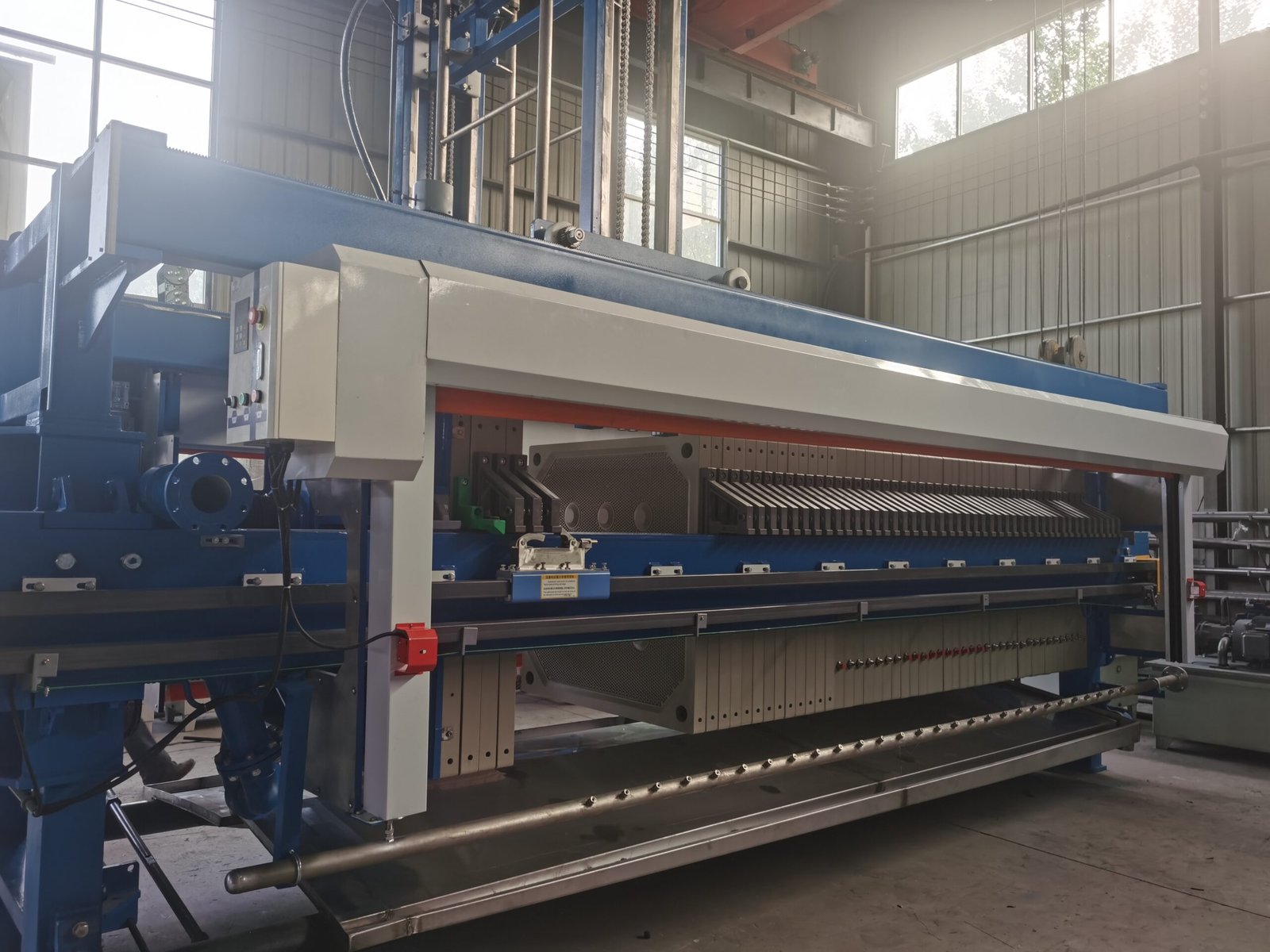

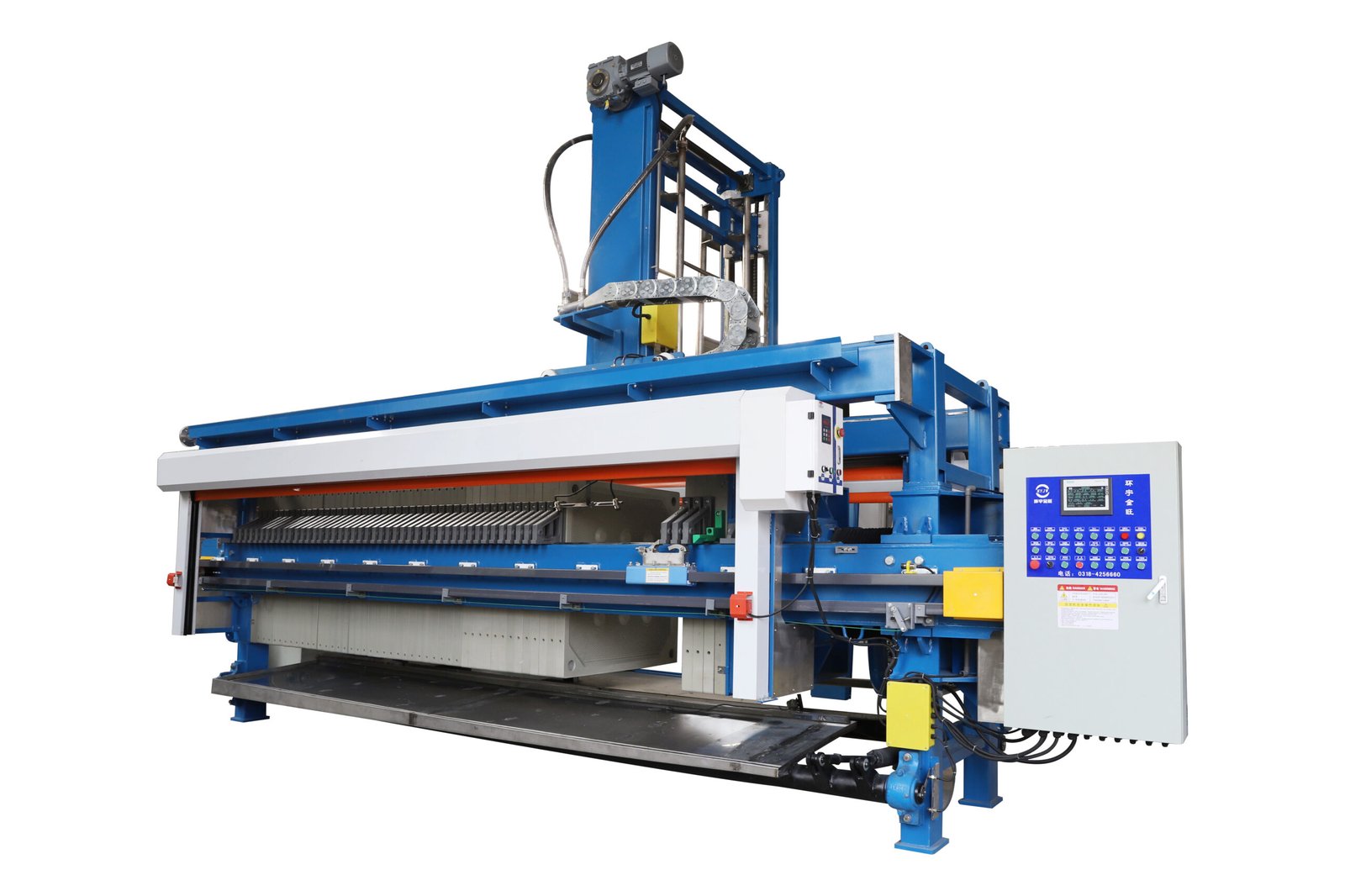

1250 Double-End Feeding Diaphragm Filter Press with Integrated Filter Cloth Washing System

Core Advantages

Premium‑grade components: Famous‑brand motor delivers stable operation and low energy consumption. Omron / Siemens / Schneider electrical components realize full‑process automatic control.
Stable hydraulic system: High‑quality hydraulic parts, integrally‑machined tank body for outstanding reliability.
Robust H‑beam main beam: Excellent rigidity and anti‑deflection performance to avoid beam bending failure.
Low‑moisture filter cake: After membrane squeezing, cake moisture can drop below 20 % (max 25 kg squeezing pressure).
Reinforced polypropylene filter plates: Large‑area point‑recessed chambers enable fast filtration and short cycle time for higher efficiency and economic returns.

Application Industries

Ideal for solid‑liquid separation in coal washing, metallurgy, mining, petroleum, chemical, dyestuff, pharmaceutical, food, sewage treatment, light industry, ceramics, sugar & starch processing, paint, national‑defense and environmental‑protection industries.

1. XₐᴹZG/2000‑UF (U-type plastic filter plates, thickness 95/85, filter cloth 1mm/plate)

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Overall length(mm)	Width(mm)	Height(mm)
★500	35/34	40	10	46994	8585	10310	3100	2450
★600	42/41	40	12	48956	9873	11598	3100	2450
★700	49/48	40	14	51350	11161	12886	3100	2450
★750	53/52	40	15.15	53850	11897	13622	3100	2450
★800	56/55	40	16	55240	12449	14174	3100	2450
★900	63/62	40	18	64214	13737	15462	3100	2450
★1000	70/69	40	20	68511	15025	16750	3100	2450

Note: Filter area preceded by ★ comes with one set of center supports.

2. XₐᴹZG/2500×2600‑UF (U-type plastic filter plates, thickness 90/80, filter cloth 1mm/plate)

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Overall length(mm)	Width(mm)	Height(mm)
★800	37/36	40	16.3	110000	10085	13138	3300	3380
★1000	46/45	40	20.2	122000	11855	14911	3300	3380
★1200	55/54	40	24.2	135000	13630	16684	3300	3380
★1500	68/67	40	29.9	154000	16190	19245	3300	3380

Note: Filter area preceded by ★ comes with a pair of intermediate supports.

3. XₐᴹZG/1600‑UF (U-type plastic filter plates, thickness 85/80, filter cloth 1mm/plate)

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Overall length(mm)	Width(mm)	Height(mm)
★250	28/27	40	4.97	21564	6670	8175	2570	1925
★300	34/33	40	6.04	23555	7690	9195	2570	1925
★350	40/39	40	7.1	25542	8700	10205	2570	1925
★400	45/44	40	7.99	27199	9545	11050	2570	1925
★450	51/50	40	9.06	29187	10560	12065	2570	1925
★500	56/55	40	9.95	30842	11400	12905	2570	1925
★600	68/67	40	12.08	34819	13430	14935	2570	1925

Note: Filter area preceded by ★ comes with a pair of intermediate supports.

4. XₐᴹZG/1500×2000‑UF (U-type plastic filter plates, thickness 90/80, filter cloth 1mm/plate)

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Overall length(mm)	Width(mm)	Height(mm)
★350	34/33	40	7.15	33459	7980	9870	2400	2450
★400	38/37	40	7.99	35354	8675	10565	2400	2450
★500	48/47	40	10.09	40092	10415	12305	2400	2450
★600	57/56	40	11.98	44355	11980	13870	2400	2450
★700	67/66	40	14.08	49093	13720	15610	2400	2450
★800	76/75	40	15.97	53357	15290	17180	2400	2450

Note: Filter area preceded by ★ comes with a pair of intermediate supports.

5. XₐᴹZG/1250‑UF

5‑1 Filter plates: U-type plastic filter plates, thickness 76/72, filter cloth 1mm/plate

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Overall length(mm)	Width(mm)	Height(mm)
80	15/14	38	1.5	8318	3775	5530	1970	1660
100	19/18	38	1.91	8991	4385	6140	1970	1660
120	23/22	38	2.31	9641	4990	6750	1970	1660
150	28/27	38	2.81	10434	5790	7510	1970	1660
★160	30/29	38	3.01	10751	6055	7810	2130	1660
★200	38/37	38	3.82	12020	7270	9030	2130	1660
★240	45/44	38	4.52	13131	8335	10090	2130	1660
★250	47/46	38	4.72	13418	8640	10400	2130	1660

5‑2 Filter plates: U-type plastic sheet, thickness 78/74, filter cloth 1mm/plate

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Overall length(mm)	Width(mm)	Height(mm)
80	15/14	40	1.58	8318	3835	5590	1970	1660
100	19/18	40	2.01	8991	4460	6220	1970	1660
120	23/22	40	2.43	9641	5080	6840	1970	1660
150	28/27	40	2.96	10434	5860	7620	1970	1660
★160	30/29	40	3.17	10751	6175	7930	2130	1660
★200	38/37	40	4.02	12020	7420	9180	2130	1660
★240	45/44	40	4.76	13131	8515	10270	2130	1660
★250	47/46	40	4.97	13418	8825	10580	2130	1660

Note: Filter area preceded by ★ comes with one set of center supports.

6. XₐᴹZG/1500‑UF (U-type plastic sheet, thickness 85/80, filter cloth 1mm/plate)

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Overall length(mm)	Width(mm)	Height(mm)
★220	29/28	40	4.48	18669	6840	8345	2470	1830
★250	33/32	40	5.10	19727	7520	9025	2470	1830
★300	39/38	40	6.03	21285	8530	10035	2470	1830
★350	46/45	40	7.11	23106	9710	11215	2470	1830
★400	52/51	40	8.04	24654	10730	12235	2470	1830
★450	59/58	40	9.12	26474	11910	13415	2470	1830
★500	65/64	40	10.05	28035	12925	14430	2470	1830

Note: Filter area preceded by ★ comes with a pair of intermediate supports.

7. XₐᴹZG/800‑UF (U-type plastic, thickness 65/60, filter cloth 1mm/plate)

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Overall length(mm)	Width(mm)	Height(mm)
20	10/9	30	0.30	3374	2630	4045	1490	1110
30	15/14	30	0.45	3815	3290	4705	1490	1110
40	20/19	30	0.60	4258	3960	5375	1490	1110
50	25/24	30	0.75	4699	4620	6035	1490	1110
60	30/29	30	0.90	5141	5290	6705	1490	1110

Note: Feeding pressure ≤1.2MPa, pressing pressure ≤1.5MPa. Pit size excludes the flap.

8. XₐᴹZG/1000‑U

8‑1 U-type plastic chamber, thickness 70/68, filter cloth 1mm/plate

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Beam lead-out(mm)	Overall length(mm)	Width(mm)	Height(mm)
60	19/18	35	1.08	5970	4225	5205	5745	1690	1390
70	22/21	35	1.25	6270	4650	5630	6170	1690	1390
80	25/24	35	1.42	6570	5080	6060	6600	1690	1390
90	28/27	35	1.59	6870	5505	6485	7025	1690	1390
100	31/30	35	1.76	7170	5930	6910	7450	1690	1390
120	37/36	35	2.1	7790	6780	7760	8300	1690	1390

8‑2 U-type plastic chamber, thickness 72/70, filter cloth 1mm/plate

Filter area(m²)	Number of filter plates	Filter plate thickness(mm)	Filter chamber volume(L)	Overall weight(kg)	Foundation size L(mm)	Beam lead-out(mm)	Overall length(mm)	Width(mm)	Height(mm)
60	19/18	40	1.23	5970	4300	5280	5820	1690	1390
70	22/21	40	1.43	6270	4740	5720	6260	1690	1390
80	25/24	40	1.62	6570	5180	6160	6700	1690	1390
90	28/27	40	1.82	6870	5615	6595	7135	1690	1390
100	31/30	40	2.01	7170	6055	7035	7575	1690	1390
120	37/36	40	2.40	7790	6930	7910	8450	1690	1390
