Product Overview

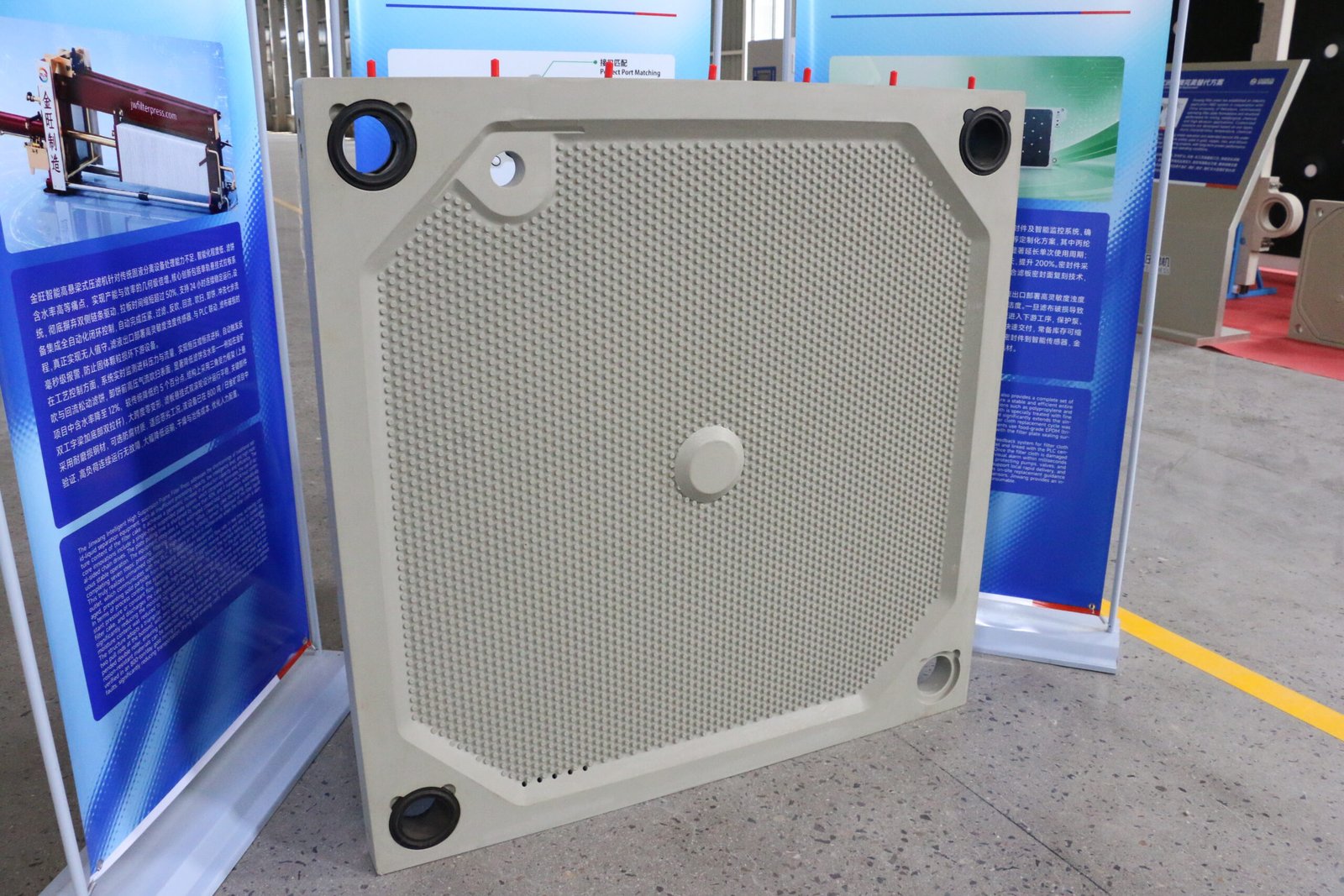

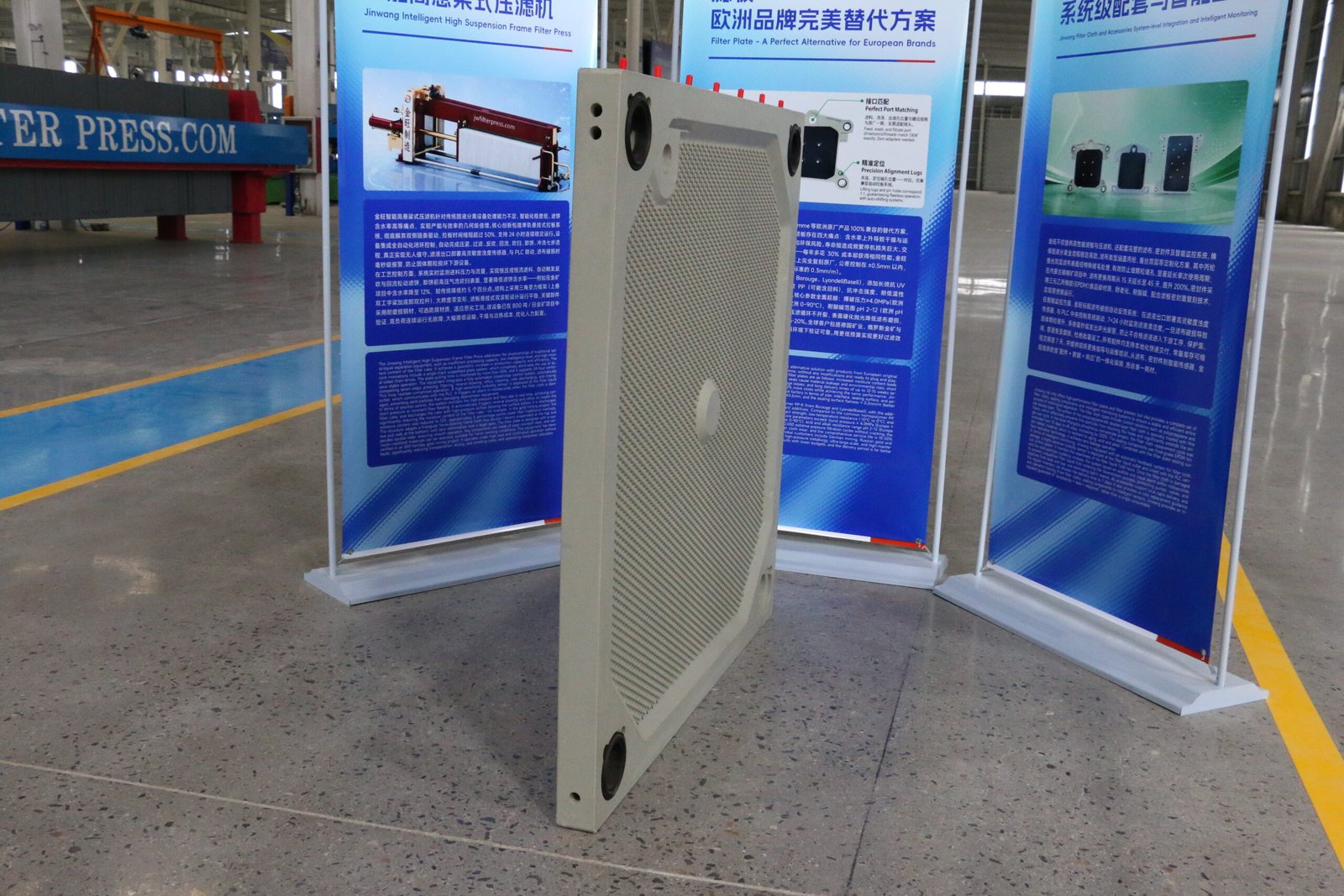

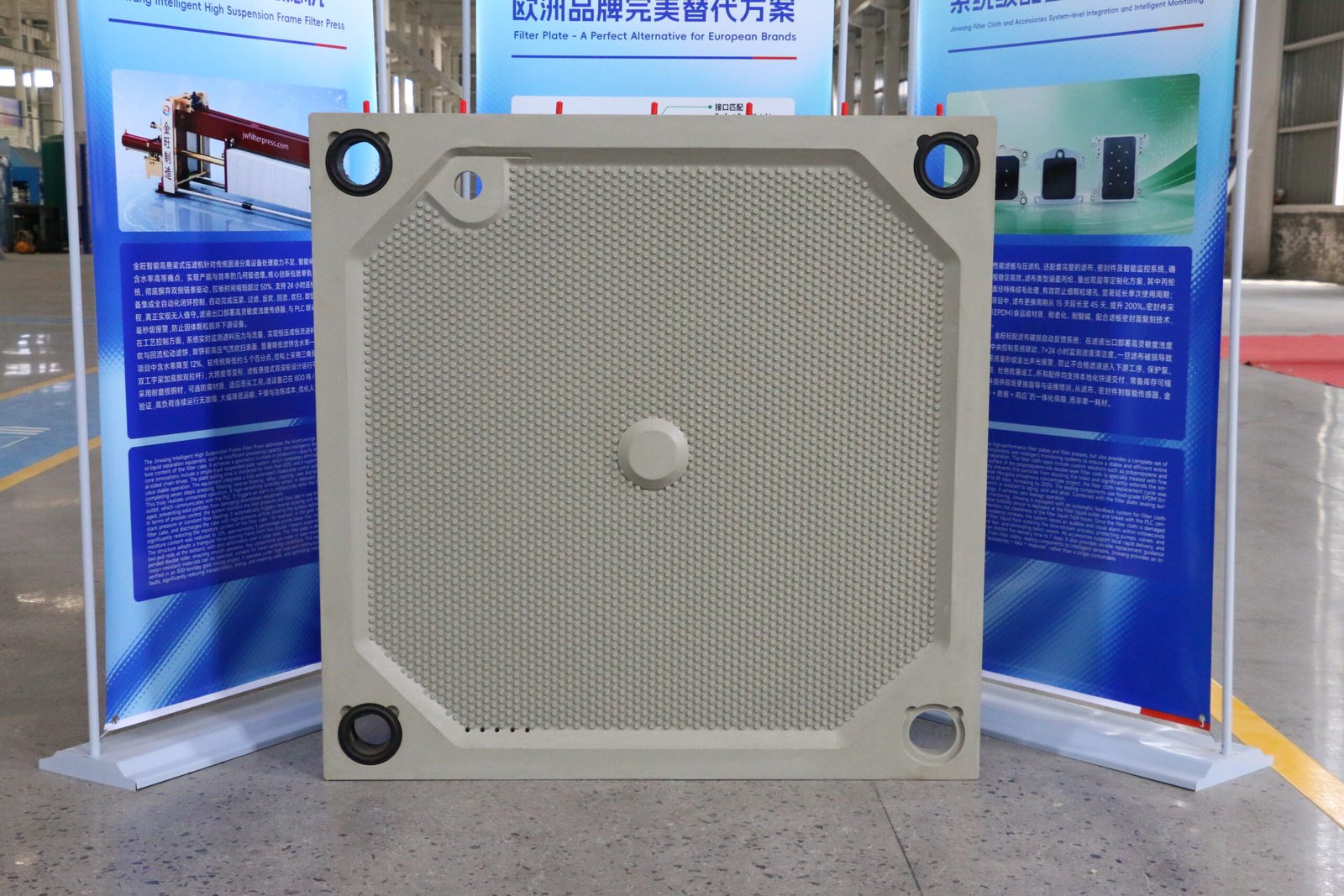

The Jinwang 1200×1200 Single-Chamber Feed Filter Plate is a chamber-type filter plate designed for industrial filter presses requiring reliable filtration performance and efficient slurry feeding.
The single-chamber feed configuration allows the suspension to enter the filtration chamber through a dedicated feed channel, while filtrate is discharged through the internal drainage channels of the plate.
The 1200×1200 mm format provides a practical balance between filtration capacity, equipment size and operating efficiency, making it suitable for a wide range of industrial solid-liquid separation applications.
Single-Chamber Feed Design
The single-chamber structure is designed to provide stable slurry distribution during filtration.
During operation:
- Adjacent filter plates are compressed together with filter cloths installed between them.
- Slurry enters through the dedicated feed channel.
- The suspension is distributed into the filtration chamber.
- Liquid passes through the filter cloth while solids are retained.
- Filter cake gradually builds inside the chamber.
- Filtrate flows through the internal drainage channels and exits the filter plate.
- After filtration, the plates are separated and the filter cake is discharged.
This structure is suitable for applications where stable filtration and reliable cake formation are more important than achieving extremely low cake moisture.
Key Advantages
Single-Chamber Feed Structure
The dedicated feed arrangement provides stable slurry entry and effective distribution inside the filtration chamber.
Large 1200×1200 Format
Suitable for medium- to large-capacity industrial filter presses.
High-Quality PP Material
Polypropylene provides good mechanical strength, corrosion resistance and dimensional stability.

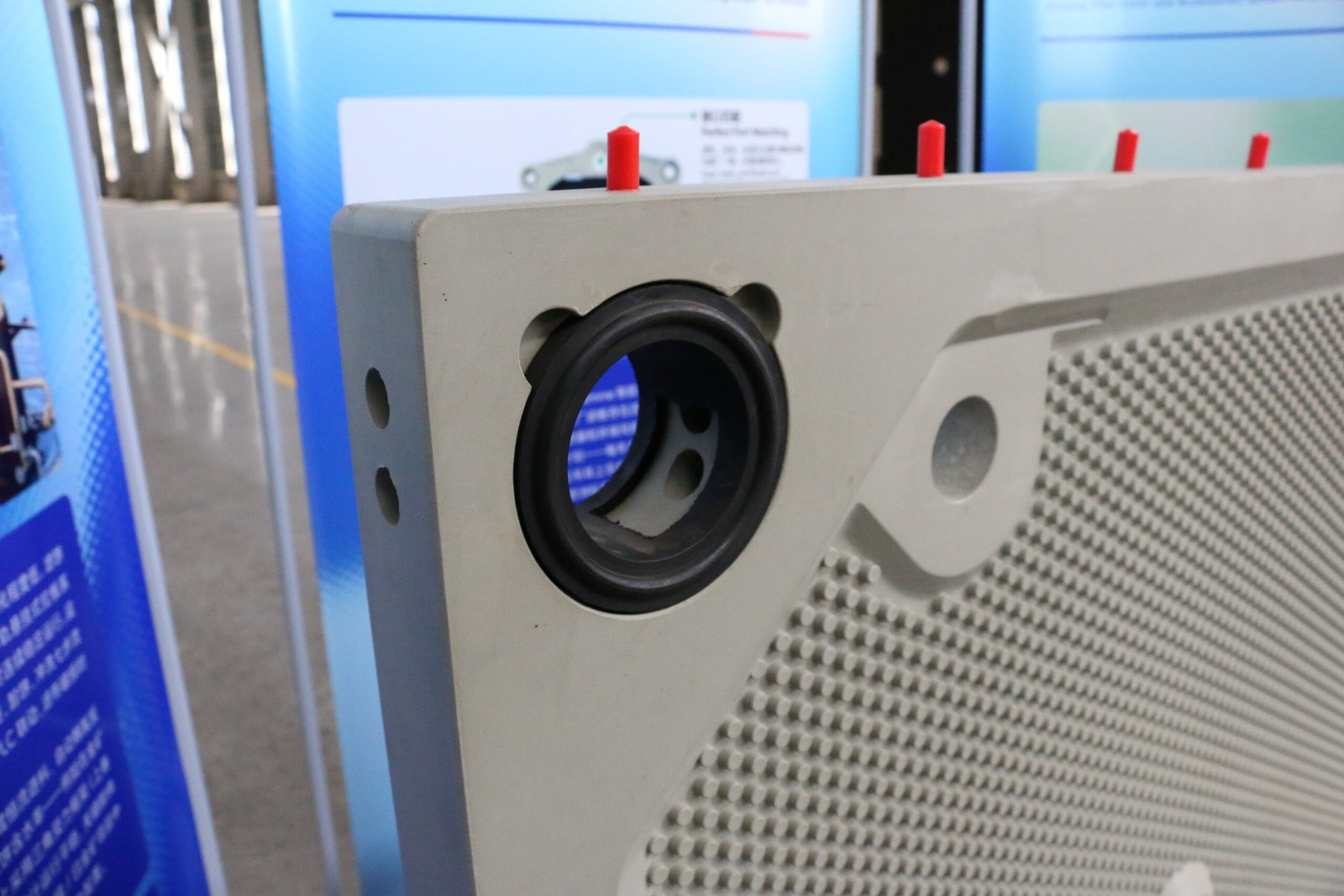

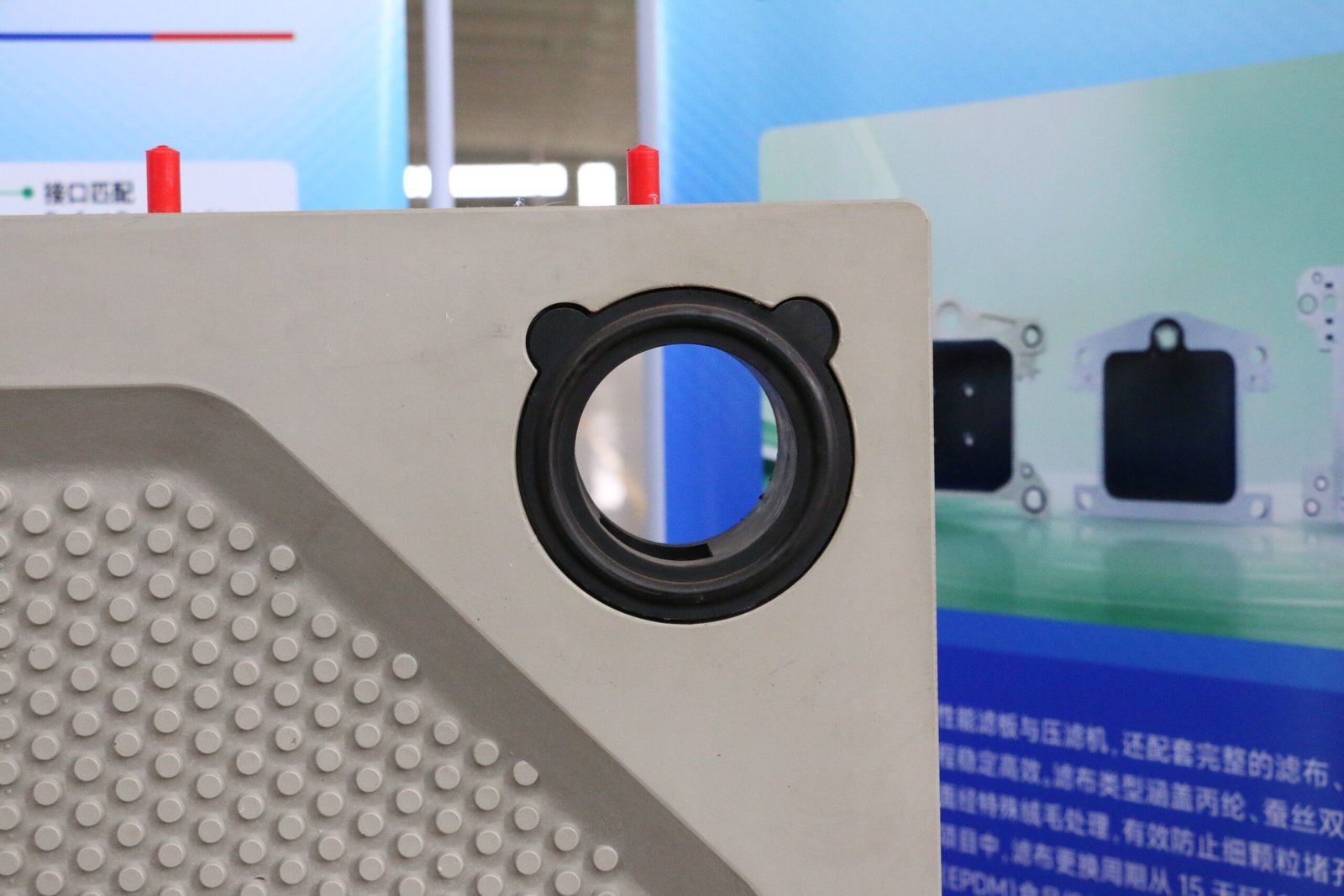

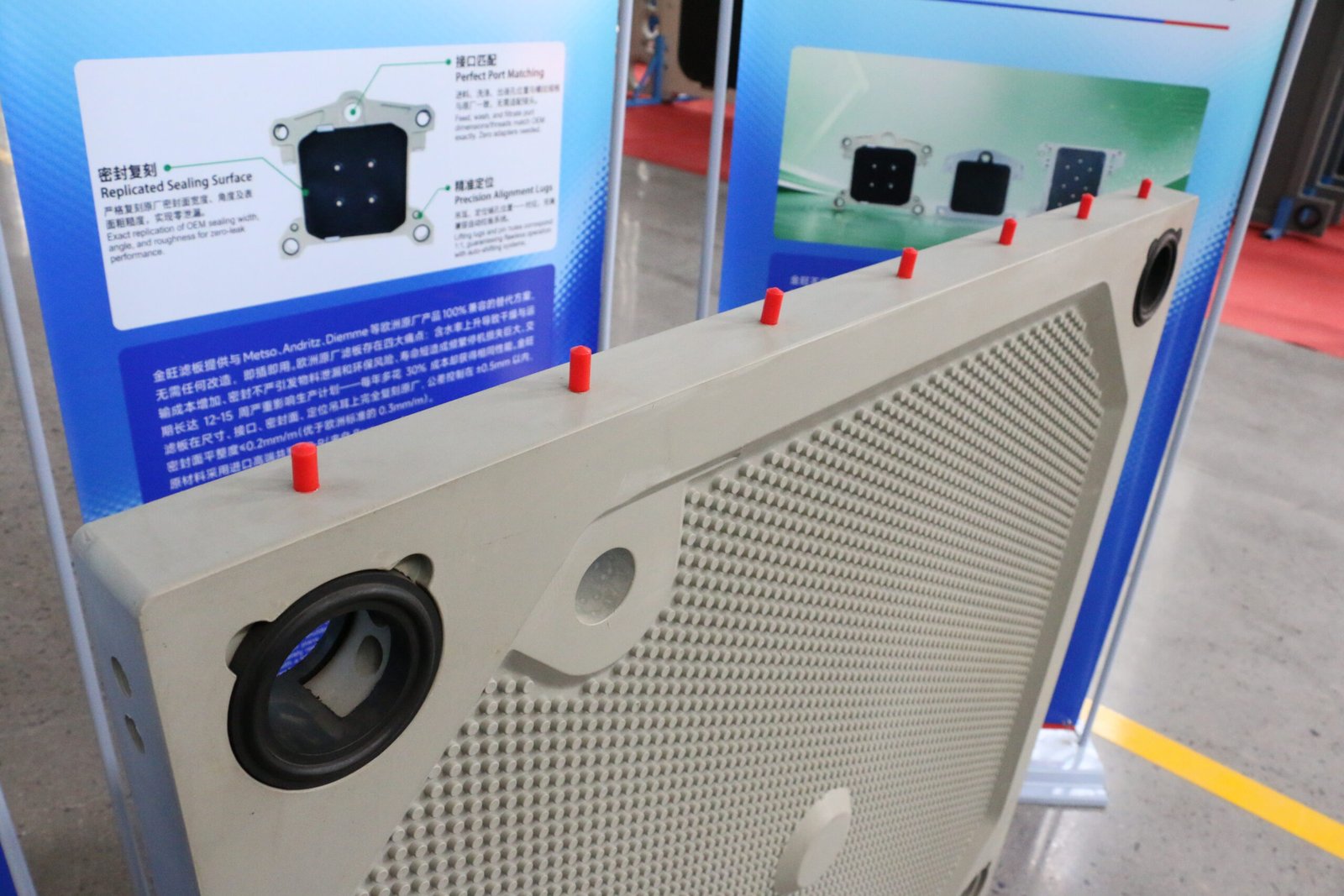

Reliable Sealing
Precision-machined sealing surfaces help maintain stable chamber pressure and reduce leakage.
Efficient Filtrate Drainage
Optimized internal drainage channels facilitate rapid removal of filtrate from the filtration chamber.
Automation Compatible
The plate can be used with automatic plate shifting, automatic cloth washing and other filter press automation systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Chamber Filter Plate |
| Feed Type | Single-Chamber Feed |
| Plate Size | 1200×1200 mm |
| Material | Reinforced Polypropylene (PP) |
| Chamber Structure | Single Chamber |
| Feed Configuration | Central / Customized |
| Filtrate Discharge | Internal Filtrate Channels |
| Working Pressure | Customized according to filter press |
| Application | Industrial Solid-Liquid Separation |
Typical Applications
The 1200×1200 Single-Chamber Feed Filter Plate is suitable for:
- Mining and mineral processing
- Chemical processing
- Industrial wastewater treatment
- Sludge dewatering
- Coal preparation
- Ceramic processing
- Food processing
- Metallurgical industry
- Sand and aggregate processing
- General industrial filtration
Customized Manufacturing
Jinwang can manufacture 1200×1200 single-chamber feed filter plates according to the customer’s filter press model and filtration requirements.
Customization options include feed channel configuration, chamber depth, filtrate discharge arrangement, sealing design, filter cloth configuration and plate material formulation.
The plate can also be supplied as part of a complete filtration solution including filter cloths, diaphragm plates, automatic plate shifting systems and cloth washing systems.
Jinwang — Precision-Engineered Chamber Filter Plates for Reliable Industrial Filtration.
